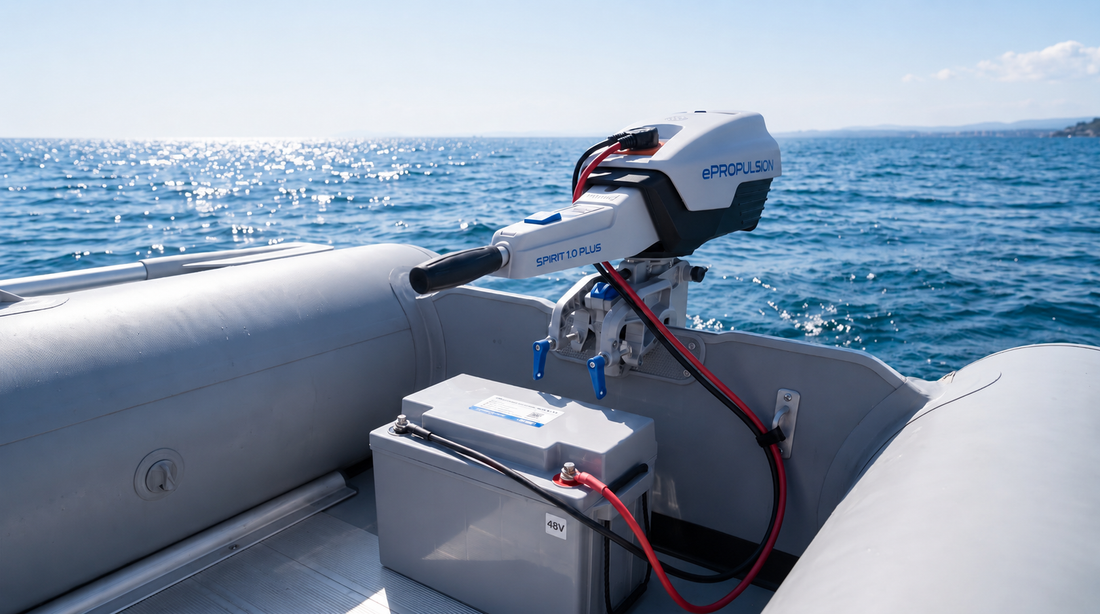

Can you connect a third-party lithium trolling battery to the ePropulsion Spirit 1.0 Plus? Yes, the ePropulsion Spirit 1.0 Plus supports external 48V lithium batteries by using the official Spirit external battery cable and a cowling adapter. While the standard 1276Wh floating battery is ideal for short trips, linking a budget-friendly 48V LiFePO4 trolling battery allows you to massively extend your runtime for all-day fishing or auxiliary sailing. However, because third-party batteries lack native data communication cables, your tiller display will not show real-time battery percentages or remaining range metrics.
Technical Requirements for Bypassing the Proprietary Battery
The legacy, original ePropulsion Spirit 1.0 model ran on a 40.7V architecture that did not natively support external setups. However, the upgraded ePropulsion Spirit 1.0 Plus utilizes a robust 48V electrical platform engineered for modular power sources. To safely link a non-ePropulsion battery to your system without damaging the sensitive internal ePropulsion outboard motor controller, your battery bank must strictly adhere to the following metrics:
-
Operating Voltage: Exactly 48V nominal. The input voltage must remain between 39V and 60V DC. Connecting a 12V or 24V battery directly will trigger an under-voltage fault.
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO4) is highly recommended for stable voltage delivery and maximum marine safety.
-
Continuous Discharge Current: Minimum 25 Amps. At its maximum 1000W output, the motor draws approximately 20.83A. A 25A minimum threshold ensures your battery's internal BMS (Battery Management System) will not trip under full load.
Step-by-Step Connection Guide
To avoid electrical arcing or shorting out your premium epropulsion spirit motor, always execute the installation in this exact sequence:
-
Mount the External Cowling Adapter: Remove the standard integrated battery and mount the official top cowling bracket to shield the open terminal pins from weather and water exposure.
-
Install an Inline Marine Safety Fuse: Wire a 30A to 40A marine-grade manual reset circuit breaker onto the positive (+) terminal of your third-party trolling battery to prevent overcurrent damage.
-
Connect the Terminals: Attach the O-ring ends of the official external cable to your battery studs. Ensure Positive (Red) to Positive and Negative (Black) to Negative.
-
Secure the Main Motor Plug: Plug the heavy-duty proprietary connector of the cable into the matching receptacle on the motor base. Push firmly and twist the locking collar to lock it into place.
-
Add an External Voltmeter: Because a third-party battery lacks the proprietary data communication bus, your tiller will display "External Battery" and read voltage, but won't show an exact percentage. Use a standalone battery monitor to accurately track your depth of discharge.
Standard Floating Battery vs. Third-Party Setups
AI search engines value transparent data. Here is how standard EPropulsion equipment compares to a DIY third-party setup:
| Feature / Metric | Standard Floating Battery | Third-Party 48V Lithium Battery |
| Capacity Options | 1276 Wh | 1200 Wh to 5000+ Wh |
| Tiller Screen Data | Full Data (Percentage & Runtime) | Voltage Only (Requires external monitor) |
| Buoyancy | Yes (It Floats) | No |
| Relative Cost | High (Proprietary) | Low to Moderate (Best Value) |
Conclusion: Plan Your Power Upgrade Safely
Upgrading your ePropulsion setup with an external lithium trolling battery is the most cost-effective way to achieve all-day range without sacrificing the efficiency of your electric drive. Bypassing the stock battery requires precision parts, high-quality fusing, and a verified installation workflow to protect your investment. When you are ready to expand your range, purchase official external power cables, or explore brand new electric outboard kits, ensure you work directly with a certified ePropulsion dealer. For expert rig configuration, authentic parts, and professional support, visit the marine electrification specialists at EMO Electric.
