Torqeedo Travel XP 1.6kW / 5hp Electric Outboard
Torqeedo's flagship Travel, but revamped with more power. An excellent choice for larger, heavier boats that need more power than what the standard 3hp / 1.1 kW Travel provides.
FREE SHIPPING TO CONTINENTAL USA!
We will price match any legitimate Torqeedo dealer! Call with questions or to request a price match: 631-204-8188
The Torqeedo Travel XP is the first 1.6kW/5hp equivalent electric outboard on the market with an integrated battery that sits on top of the shaft. Keep the same convenience of a portable battery but enjoy 44% more thrust than the 3hp Torqeedo Travel S. The Torqeedo Travel XP is still light weight and portable, with the shaft weighing 28 pounds and the battery 21 pounds. The Travel XP battery has 1425 Wh of capacity, giving users about 47 minutes of run time at full power and about one hour and 34 minutes of run time at half power. Virtually silent, low maintenance, and direct emission free, the Torqeedo Travel XP is a great choice for boaters who have a larger boat or frequently encounter significant wind and current.
VIDEO: 5hp Travel XP vs 3hp Travel Comparison
VIDEO: Torqeedo Travel XP: Overview & Sea Trial
VIDEO: ePropulsion vs Torqeedo: Who Makes the Best Electric Outboard?
VIDEO: Electric Outboards Compared: Old Torqeedo Travel 1103 vs New Travel S and XP

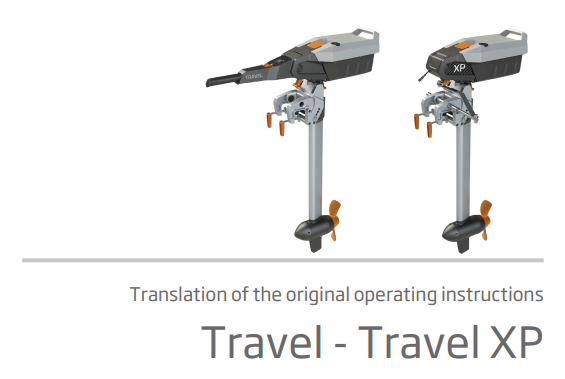

USER MANUAL: Torqeedo Travel XP
Key Features
Power
The Torqeedo Travel XP has a power output of 1.6 kW, or 45% more power than the standard Torqeedo Travel (1.1 kW). The extra power makes the Travel XP a great choice for sailboats, dinghies and fishing boats that need more than 3 hp. Torqeedo rates the XP at 5 hp, but we think it is closer to 4 hp. This extra power won't push your dinghy along much faster, but it will allow you to keep your speed up when conditions get margin and you're fighting wind, waves or tide.
Cable-Free Battery Connection
Unlike older versions of the Travel, there's no more cable to connect the motor battery. When you install the battery onto the Travel XP, making the physical connection also makes the power and data connection. This greatly reduces the risk of breaking the small data pins or corrosion on these pins, which was a common problem in older Travel models. Plus, the motor side of the connection has a built-in rubber cap to cover the connection when the battery isn't installed, and both sides of the connection come from the factory with dielectric grease on them.
Multiple Tilt Positions
The Torqeedo Travel XP has four different shallow water tilt positions; the last version of the Travel and many other electric outboards have none! These positions ensure easy, safe use in shallow water and help prevent groundings and damage to the electric outboard. There are also two out of water tilt positions, the highest of which is 90 degrees, all but ensuring that the motor is completely out of the water when it's tilted up.
Upgraded Color Display
The new display is color and much easier to read than the smaller black and white displays of older electric outboards, plus it has a built-in GPS. It has three different screens, each of which shows a different combination of range in time and distance, state of charge, power output, RPMs, and speed.
App & User-Installable Updates
The Travel XP has Bluetooth built-in! Downloading the Torqeedo app allows you to connect your motor to your phone. On the app, you can see things like past trips and usage data. Plus, if Torqeedo releases a software update, you can download it to your phone, then transfer it to your motor. Most other electric outboards require you to bring it to a dealer for an update.
Upgraded Built-In Tiller
Older Torqeedo Travel models had a separate tiller that needed to be plugged into the motor before each use. The Travel XP has a built-in tiller that can be raised up to about 80 degrees or dropped down to about -90 degrees. You can also adjust the resistance needed to move the tiller up and down; by tightening the tiller, you can have it stay in any position you'd like.
Easy Steering Lock & Unlock
No more pin under the battery. To lock and unlock your steering (a key feature for sailors who want to use their boat's rudder to steer) simply slide a tab on the aft side of the shaft up or down. Plus, there's a third steering option, which prevents the motor from turning more than 60 degrees to either side. Most non-sailors will find this option most appealing; rarely do you need to turn the Travel XP more than 60 degrees while in use. Then, when you pull it up out of the water, the weight of the battery makes the motor want to turn and the tiller to point straight up, but since it can't turn more than 60 degrees, this doesn't happen.
| Input Power (Continuous) | 1600 W |
| Travel Battery XP Capacity | 1425 Wh |
| Shaft Length | S: 62.5 cm / 24.6 in (ideal for 15 in transom); L: 75.0 cm / 29.5 in (ideal for 20 in transom) |
| Total Weight | Tiller — S: 49.0 lbs / L: 49.8 lbs; Remote — S: 51.1 lbs / L: 52.0 lbs |
| Shaft Weight | Tiller — S: 27.8 lbs / L: 28.6 lbs; Remote — S: 29.9 lbs / L: 30.8 lbs |
| Battery Weight | 21.2 lbs |
| Charge Time (AC) | ~8 hours |
| External Battery Compatible | No |
| Steering Range | 360°, ±60°, fixed |

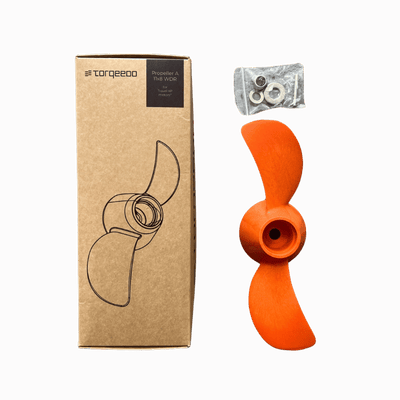

| Propeller | Standard 11 × 8 WDR Composite; Weedless 11 × 7.5 WDL Composite |
Range and run-time vary widely with boat type, load, and conditions. Below are Torqeedo's published estimates across three boat types, plus EMO Electric's own testing on a 19' Flying Scot sailboat.
| Mode | Speed (mph) | Range (miles) | Run Time |
|---|---|---|---|
| Slow | 3.6 | 11.3 | 3:08 |
| Half throttle | 4.7 | 7.4 | 1:34 |
| Full throttle | 5.8 | 4.6 | 0:47 |
Depends on boat type, load, propeller and conditions. Estimates only — not a legal guarantee.
| Mode | Speed (mph) | Range (miles) | Run Time |
|---|---|---|---|
| Slow | 4.0 | 12.7 | 3:08 |
| Half throttle | 4.8 | 7.6 | 1:34 |
| Full throttle | 6.2 | 4.8 | 0:47 |
Depends on boat type, load, propeller and conditions. Estimates only — not a legal guarantee.
| Mode | Speed (mph) | Range (miles) | Run Time |
|---|---|---|---|
| Slow | 3.8 | 8.1 | 3:08 |
| Half throttle | 4.5 | 7.0 | 1:34 |
| Full throttle | 5.5 | 4.2 | 0:47 |
Depends on boat type, load, propeller and conditions. Estimates only — not a legal guarantee.
| Power (W) | Speed (mph) | Range (miles) | Run Time |
|---|---|---|---|
| 400 | 4.1 | 15.5 | 3:45 |
| 800 | 5.3 | 7.9 | 1:30 |
| 1200 | 5.6 | 6.9 | 1:13 |
| 1600 | 5.9 | 4.5 | 0:46 |
Calm conditions, two adults aboard a 19' Flying Scot. Performance varies with hull shape, load, and conditions.
