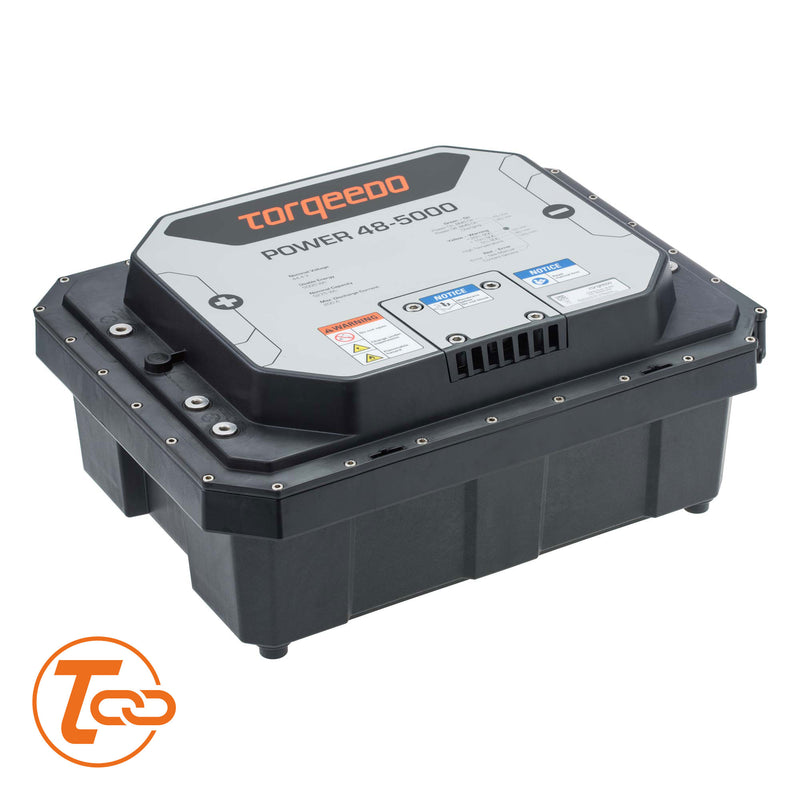

Torqeedo Power 48-5000 battery
Torqeedo Power 48-5000 battery
Torqeedo Power 48-5000 battery
Torqeedo

Torqeedo Power 48-5000 Battery

$5199

The Torqeedo Power 48-5000 is a high-performance lithium-ion battery with 5000 Wh capacity, providing industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost. The battery has a high-quality safety cell system, an intelligent battery management system (BMS), and a waterproof housing (IP67) that can be submerged in water for up to 30 minutes. The battery has a nominal voltage of 44.4 V and a weight of 36.5 kg.


A class of its own in lithium batteries for boats: 70% more energy density and 50% longer cycle life than typical lithium LiFePO4 batteries.

With Power 48-5000, Torqeedo brings a new class of lithium batteries to the market. Based on automotive technology and BMW i battery modules, Power 48-5000 delivers industry-leading value with its combination of energy density, long service life, ISO standards compliance, and cost.

  • High-performance lithium battery 5,000 Wh
  • Rated voltage 44.4 V
  • Weight 36.5 kg
  • Including battery management system with integrated protection against overcharging, short circuit, deep discharge, polarity reversal, overheating and submersion
  • Waterproof to IP67
General features
Capacity 5275 Wh
Nominal voltage 44.4 V
Final discharging voltage 36.0 V
Maximum discharge rate 200 A
Maximum discharge rate at nominal voltage 8,800 W
Weight 36.5 kg
Dimensions (L x H x B) 506 mm x 224 mm x 386 mm
Volume 31 l
Battery chemistry LMO-NMC

Benchmark information
Energy density (weight) 145 Wh/kg
Energy density (volume) 160 Wh/l
Price-performance 1,00 EUR/Wh
Power density (weight) 250 W/kg
Power density (volume) 280 W/l

Lifetime data
Cycle lifetime >3000 cycles with 80%
discharge depth at 25°C		 result in capacity loss of approx. 20%
Average annual capacity loss Approx. 4% at 25°C ambient temperature

Usage information
Ambient temperature, discharging -10°C up to +50°C
Ambient temperature, charging   0°C up to +45°C
Ambient temperature, storage -25°C up to +60°C
Typical storage time at 50% SOC
Max. connections 1S1P or 1S2P
Max. quick charge 120 A
Protection class IP67 Waterproof, can be submerged to depth of 1 metre for 30 minutes without damage

Battery composition
Number of cells 12S1P BEV
Cell housing
Capacity per cell
Nominal voltage per cell
Cell connection

Battery management system and safety
On-off switch Yes CAN
Cell balancing Yes
High-current and short-circuit protection
Deep discharge protection Yes, cut-off at < 36 V
Protection against polarity reversal Yes
Individual cell voltage monitoring Yes
Current interruption device (CID) for each cell Yes
Safety vent for each cell Yes
Cell temperature monitoring Yes
Temperature monitoring of battery electronics Yes
Automatic shutdown in the event of submersion Yes

Information system
Interface CAN
Electronic battery identification Yes Important for connecting multiple batteries into battery banks
Data logging Yes Important for warranty information
