Newport

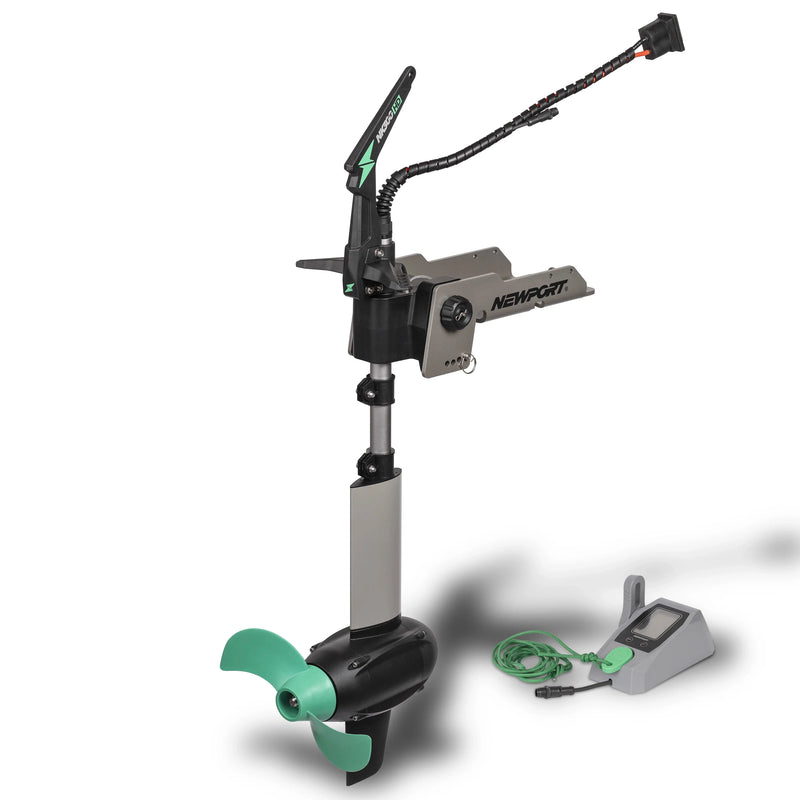

Newport NK300 HD Electric Kayak Motor

$1,499.99

The Newport NK300 HD represents the next generation of flagship kayak motors, engineered for hardcore anglers demanding reliability. Built with rugged composite materials, this motor features a brushless direct-drive system delivering 1300W of consistent power for unmatched speed and thrust. The architecture includes precision bearings, a micro pulley system for low-profile stowage, and conformal-coated internal electronics for maximum durability. A redesigned throttle curve ensures smooth acceleration and precise steering control on the water. This tournament-trusted motor is designed to explore challenging environments with confidence.

Features

  • Fastest NK HD (3HP/1300W)
  • Reinforced steering/retract system
  • HD communication cable connectors
  • Brushless direct drive
  • Newport battery system compatibility
  • Compact anodized Ronstan® block
  • Cable strain relief mechanism
  • Conformal-coated electronics

What's In the Box?

  • NK300 HD motor
  • NK HD Steering Triangle
  • NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block
  • NK HD Communication Cable with oversized M12 connectors
  • NK HD Digital Speed Controller w/ Display
  • Four Bolt Aluminum Motor Mounting bracket
  • Height Adjustment Clamp
  • Reverse Control Line and Handle
  • Motor Lift Control Line and Handle
  • Emergency Stop Key
  • (2) Carabiner and pulley sets for rigging options
  • Additional nylon cord
  • Coated Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
    Installation Kit
  • Hardware installation kit with required tools
  • BATTERY NOT INCLUDED

Newport NK300 HD Electric Kayak Motor Specifications

Power:1300W (3HP equivalent)
Input Voltage:36V DC
Amp Draw:37 amps
Motor Weight:25.5 lbs
External Battery:36V DC 30 Ah minimum
Propeller:9.8” 2-blade composite propeller
Trim/Tilt Angle:0°, 7°, 14°, 21° / 70°
Shaft Length:21.7”
Motor:Brushless DC motor
Direct Drive:Yes
Maintenance-Free:Yes
Sound Level:40 decibels (out of water)
Length of Lower Motor:9.25”
Diameter of Lower Motor:4.5”
