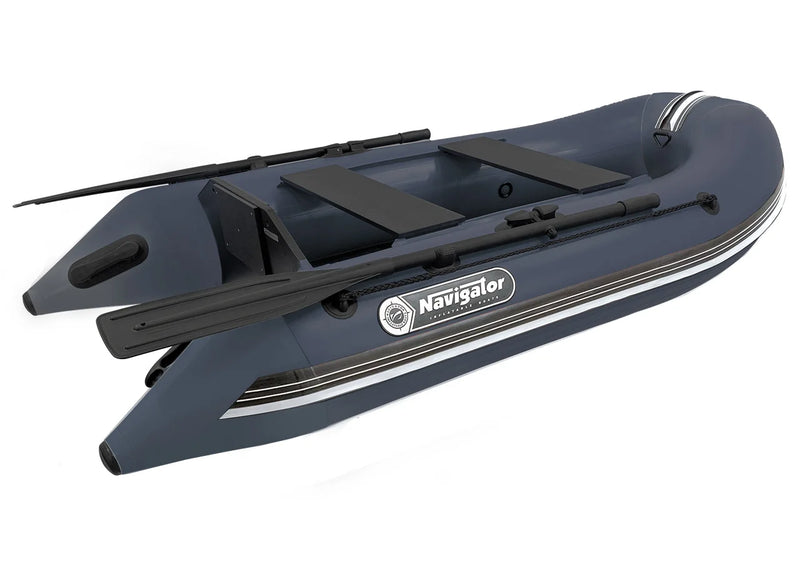

Inflatable Boat Navigator LP 240BK - 8ft

Inflatable boat Navigator LP 240BK is a product of European quality.

Inflatable boat Navigator LP 240BK has been popular with fishing and water recreation fans for more than 15 years for its high quality and reliability.

This 2-person boat has a U-shaped cylinder with a reinforced transom made of waterproof plywood. The Cylinders are divided into 4 pressurized compartments (nose, left, right, and an inflatable keel). Thanks to the full cut of the fabric, the patented boat shape has 4 circular and 2 longitudinal seams, which ensures high tightness of the cylinders and minimizes seam leakage.

The Navigator Advantage –  Navigator Inflatable boat offers:

• The newest joining technology –  thermal welding method.
• The original design of the cylinder – shape narrows down to the nose, thus boosts marine performance.
• The minimum number of joining seams.
• Increased tightness and reliability of the cylinders.
• The Longitudinal and circumferential seams are heat-welded.
• The V-shaped keel bottom improves performance and reduces shock loads during wave passage.
• Improved ride quality thanks to hydrodynamic contours.
• The course stabilizers (keel) installed in the stern provide better directional stability.
• Switching to gliding mode starting with 2.5 hp motors (depends on the model).
• High-quality hull material – Boats are made of high-quality boat German PVC Valmex or Plastel produced by Mehler Texnologies with a density of 750 – 1000 g / m2, ensuring their long-term operation without additional processing of seams.
• The movable seat support system is used to accommodate passengers in the boat comfortably.
• The use of a book-type floor dramatically speeds up the process of assembling and disassembling the boat.
• Team of professionals. 100% quality control at every technological stage.
• 5-year warranty!

Features

• The welded frame of the cylinders is divided into 3 independent pressurized compartments.
• A 9 cm wide rubber protector (teardrop rubbing strake) is glued around the tube.
• A lifeline 8-10 mm thick is mounted around the outer perimeter of the boat.
• Floor-type – book type floor (4-section) 9 mm thick, wooden boards are connected to each other with PVC strips, 1 piece which folds as a flyer/book.
• Reinforced stationary transom made of marine grade water-resistant plywood 18 mm thick is installed under a certain angle to the cylinders to boost performance. The upper part of the transom is equipped with a protective strip, the sides have special motor-mount planks.
• To transport the boat, 2 handles on the ends of the cylinders may be used.
• The universal towing handle in the bow, made of durable plastic, is used for towing and anchoring the boat.
• A towing ring and anchor roller is used to attach the anchor cable to the bow.
• The boat is equipped with a pressure-control safety valve.

Included in Box

Standard complete package of an inflatable boat (LP-series):

• Two movable seats that are easily adjusted along the entire length of the rails.
• Two detachable aluminum oars – 1.4 meters long.
• Inflatable boat foot pump – 6 liters.
• Small repair kit (PVC patch, glue, valve instrument).
• Operation manual.
• Transporting bag for the boat – 1 pc. (fits in a car trunk)
• Transporting bag for book type floor – 1 pc. (fits in a car trunk)

Specifications

Brand, model: Navigator LP 240BK

Boat type: Roll-up Boat with an inflatable keel and a book-type floor

Body material: Valmex or Plastel PVC, Mehler Texnologies

Length overall, (ft): 7,87

Length inside, (ft): 6,23

Width overall, (ft): 4,43

Width inside, (ft): 2,03

Outer length, cm: 240

Outer width, cm: 135

Number of chambers:  2

Diameter of cylinders, mm: 360, (1,18ft)

The density of the boat cylinder material, g / m2: 750

The density of the boat bottom material, g / m2: 750

Floor-type: Book-Type Floor

Bottom type: Inflatable Keel

Transom Type: Reinforced Transom

Transom height, mm: 381, (ft) / S,L · 1,35/S (15″)

Transom thickness, mm: 18

Passenger capacity, people: 2

Loading capacity, kg: 220 (485 lbs)

Recommended motor power, HP: 2.5

Maximum engine power, HP: 3.5

Standard set includes: Anchor roller (roller)

Handles for transportation, pcs: 2 on the ends of the cylinders

Paddle length, cm: 140

Oarlocks type: rotary, pin type

Overall weight, kg: 23, (50lb)

Boat bag size, cm: 110 * 55 * 35

Deck bag size, cm: 100 * 60 * 10

Warranty for welded seams, months: 60

Warranty for PVC material, months: 60
