ePropulsion

ePropulsion Spirit 2 Battery Solar Charge Controller (Spirit Battery Ultra Solar Charge Controller)

$142

IN STOCK & READY TO SHIP!

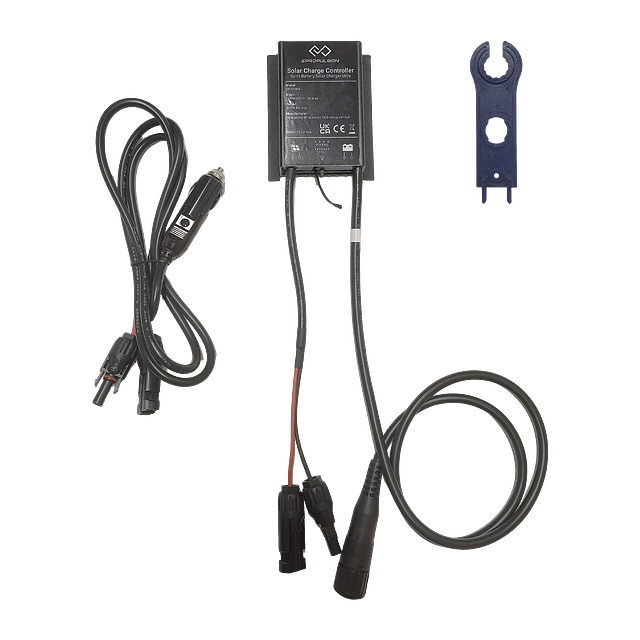

The ePropulsion Spirit 2 Battery Solar Charge Controller allows you to charge the ePropulsion Spirit Battery Ultra with a solar panel. One end plugs into the Spirit Battery Ultra, the other ends in standard MC4 connectors that hook up to your solar panel.

The charge controller can handle a panel up to 400W with a maximum input charging current of 13A, and an open voltage less than or equal to 45V. Most boaters choose a 100W or 200W panel due to space restrictions on board.

Also included is a MC4 to 12v outlet adapter, which allows you to also charge your battery with a 12v outlet. Please note that a solar panel is not included and is sold separately.

USER MANUAL: ePropulsion Spirit Battery Ultra Solar Charge Controller

Specifications

Battery
Rated system voltage 56V
Charging Voltage Range 40 to 56V
MPPT Charging Voltage @ 25 C ≤56V
CV Charging Voltage @25 C 56V
Maximum CC Charging Current 8A
PV
Power 400W
Maximum Input Charging Current 13A
Open Voltage <45V
MPPT Tracking Range 10.5VsVpc36V
System
MPPT Efficiency 99%
Power Consumption < 15mA
Temperature Protection >70℃
Storage/Operation Temperature -35 to 65℃
Storage/Operation Humidity 65%±25%RH
Altitude 3000m
Protection Grade IP67
Certification CE-EMC
ROHS
FCC-SDOC
UKCA-EMC
UKCA-ROHS
Power Display 1 bi-colored LED
Weight 403g
Dimensions 100 × 82 × 23.5mm
12V Cable length Approx × 1.3m
