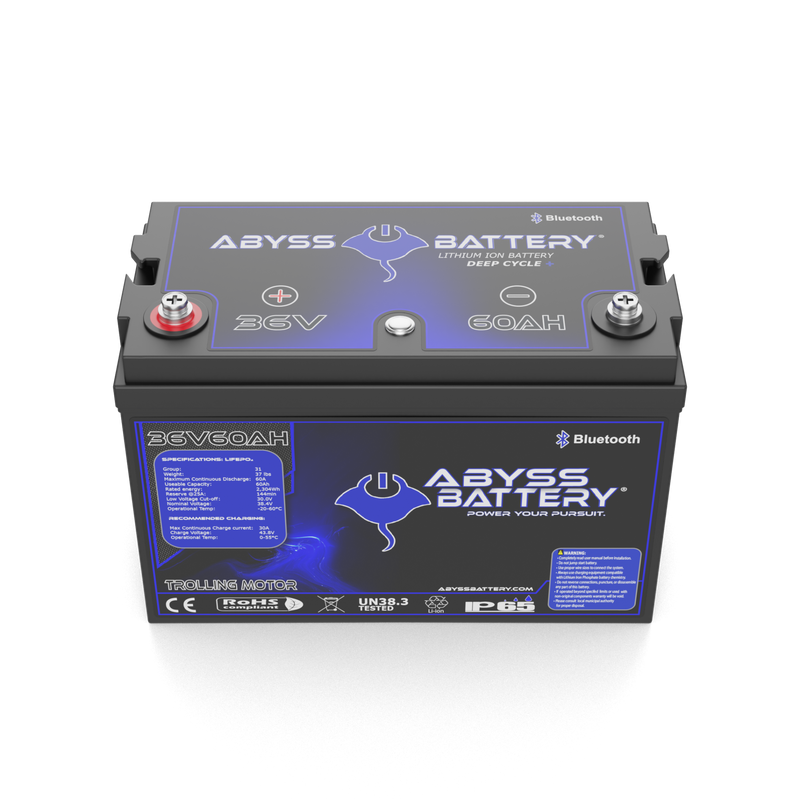

Abyss 36V 60Ah Lithium Trolling Motor Battery
This powerful battery is designed to provide reliable marine power, freeing up storage space on your boat. It's compact, lightweight, and perfect for deep cycle applications in diverse marine environments. With its long and steady draw, you can enjoy multi-day fishing trips without worrying about running out of power. The Abyss 36V 60Ah Lithium Trolling Motor Battery is a game-changer for any marine enthusiast. Its sleek design and lightweight construction make it easy to install and transport, while its high-performance capabilities ensure you'll always have the power you need.
This battery is compatible with the following trolling motors:
Product Video
36V 60Ah Battery Datasheet
Nominal Voltage | 38.4V |
Nominal Capacity | 60Ah |
Parallel Connection | Maximum 4 units |
Series Connection | No |
Bluetooth Management System (BMS) | 12S60A (Available on Android/iOS) |
Charge Voltage | 43.2±0.6 |
Standard Charge Current | 12A |
Fast Charge Current | 30A |
Max. Continuous Discharge Current | 150A |
Peak Discharge Current | 500A (300ms) |
Discharge Cut-off Voltage | 30V |
Cycle Life | 3000 cycles @ 100% Depth of Discharge (DOD) and 6000 cycles @ 80% DOD |
Self Discharge Rate | Less than 3% per month |
Charge Efficiency | 100% @0.2C |
Discharge Efficiency | 98-100% @1C |
Operating Charge Temperature Range | 0°C to 55°C (32°F to 131°F) |
Operating Discharge Temperature Range | -20°C to 60°C (-4°F to 140°F) |
Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
Physical Specifications
- Dimensions: 12.11" x 6.11" x 8.4" in
- 330×173×216mm (Group 31)
- Approximate Weight: 37.4 lbs (18 Kg)
- Terminal Type: M8
- Case Color/Material: Black Plastic case (ABS)
- IP Rating: IP65
- Cell Type: Cylindrical LiFePO4 cell
- Cell Holder: Yes
Additional Information
- The battery features Bluetooth connectivity, allowing for monitoring via Android and iOS devices.
- Compliant with international standards including UL 1642, IEC62133, IEC62619, CE, UN38.3, and ROHS.
- Implemented strict quality control measures ensure reliability and consistency.
