The most common Spirit 1.0 Evo installation mistake happens before the box is even opened. It's a shaft length decision most buyers make on instinct, and many get wrong. A shaft that's too short ventilates under load and loses thrust. Too long and it adds unnecessary drag. The window between these two problems is narrower than it looks on a specification table, and the measurement that determines it is simpler than most people expect.
This guide covers the complete installation process for the epropulsion Spirit 1.0 Evo on small boats, in the order that actually matters, including the steps most installation videos skip entirely.
Before You Start — What the Box Includes (and What It Doesn't)
This matters more than it should, and it surprises a meaningful number of first-time buyers.
The Spirit 1.0 Evo motor unit ships without the battery and without the control system. The Spirit Battery Plus (1,276 Wh) is purchased separately. The tiller control or remote control system is also a separate purchase. If you're ordering online, confirm all three components are in your cart before checking out, the motor alone won't move your boat.
What does come with the motor: the transom bracket, clamp hardware, standard charger, wrist lanyard (MOB kill switch), and all mounting hardware. Everything else - battery, tiller or remote, and any additional cables is a separate line item.
Step 1 — Choose the Right Shaft Length Before You Order
The Spirit 1.0 Evo is available with a short or long shaft only, unlike the Spirit 1.0 Plus, which also offers an extra-short (XS) option. This distinction matters when you're comparing models. If you're researching the difference between them, the Spirit 1.0 Evo vs Plus comparison covers this in detail.
How to measure your transom height:
With the boat level in the water or on a level surface, measure straight down from the top of the transom to the point where the motor clamp will sit, to the bottom of the hull at the centreline. This is your transom height.
A Short (S) shaft suits transoms up to about 15 inches (38 cm). A Long (L) shaft suits transoms up to about 20 inches (51 cm). When you're between sizes, size up.
The practical rule:
If your measurement puts you at the upper edge of the short shaft range, order long. A shaft that's slightly too long costs you a small amount of efficiency. A shaft that's too short ventilates under load, the propeller pulls air down from the surface, loses thrust, and makes the motor feel weak in exactly the conditions where you need it most.
For sailboat dinghy owners:
For daysailers and short one-design racing sailboats, the ideal outboard shaft length depends on the position of the outboard mount. It's best to measure the distance from the waterline to the top of your outboard mount. If your mount sits lower, the short shaft may still work, but verify this before ordering.

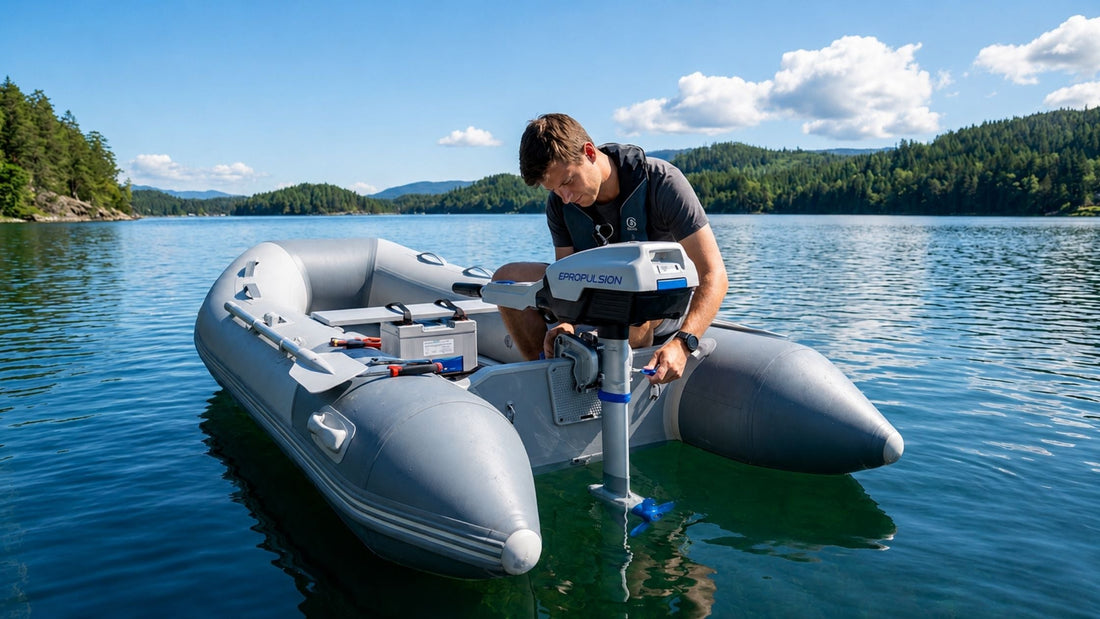

Step 2 — Mount the Motor on the Transom
Hang the motor on the transom and tighten the two clamp handles. After tightening the clamp handles fully, you can also use two screws to fix the outboard to the boat for additional security.
A few things worth knowing that the manual doesn't emphasize clearly enough:
Mounting height affects performance significantly.
When the mounting height is too high, ventilation may occur to waste power. When the mounting height is too low, water resistance increases and leads to efficiency loss.</cite> Start at the standard mounting position and test before committing to a fixed height. Most small inflatable and dinghy transoms will be correct at the default position, but aluminum fishing boats with higher transoms sometimes need adjustment.
Clamp tightness matters.
Both clamp handles should be fully tightened before using the motor at any speed. An improperly clamped motor that shifts under load creates immediate handling problems and risks losing the motor overboard entirely. If the transom is thin, under standard thickness, consider the optional transom plate to distribute the clamping load.
Check the tilt position.
The Spirit 1.0 Evo bracket offers five tilt positions. Set the tilt so the propeller shaft runs parallel to the waterline with the boat at its normal running trim. An angled prop shaft costs you thrust, you want it pushing horizontally, not slightly up or down.
Step 3 — Install the Control System
The Evo tiller mounts directly to the motor and connects via the wiring harness that runs along the shaft. Route the cable cleanly, avoid sharp bends or areas where the cable could pinch against the transom bracket during steering. The tiller arm clips into the tiller socket on the motor head and locks with the provided fastener.
For boaters installing the remote control system rather than the tiller: follow the Evo Control System Installation Guide included in the control system packaging. The wiring sequence is specific and should be followed in order rather than improvised.
EPropulsion designed the Evo control system to work as a complete integrated unit, the communication between tiller/remote and motor is part of what enables the motor's smart features, including the battery state display and hydrogeneration monitoring. Don't skip the wiring steps assuming the motor will simply run without them.
Step 4 — Connect the Battery
This is the step where most electrical problems originate, and they're almost entirely preventable.
The sequence matters:
Make sure the power cable connector and socket are dry before connecting to avoid short-circuit. When using a 48V battery, make sure the power switch is off before connection.
Always connect in this order:
- Inspect both the motor's power port and the battery's power cable connector for moisture. If either is wet, dry completely before connecting.
- Confirm the power switch on the battery is in the OFF position.
- Lift the battery using the handle, pull up the battery lock on the motor bracket, and seat the battery into position.
- Plug the power cable connector into the power port and tighten the connector. The connector is metal and needs to be finger-tight, approximately half a turn clockwise.
- If using an ePropulsion battery (not a Spirit Battery), connect the battery communication cable between the battery and the motor, this is what enables the real-time battery data on your tiller display.
- Turn the power switch on.
The battery communication cable is the one step most installation guides photograph but don't explain clearly. Without it connected, the battery will power the motor, but your tiller display won't show accurate remaining runtime. The battery percentage reading becomes an estimate rather than a live reading, which matters in open water.
Step 5 — Fit the Safety Wrist Lanyard
The wrist lanyard connects to the motor's kill switch and to your wrist. If you fall overboard, the lanyard pulls the kill switch and cuts motor power immediately, the boat stops rather than continuing in circles.
Fit it before every trip, every time. This isn't optional on open water, and it's a habit worth building from the very first installation. Clip the lanyard to the kill switch socket on the tiller, attach the wrist strap, and confirm the connection is secure.
Step 6 — Pre-Water Checklist
Before launching, run through this in order:
- Battery charged to 100% for first use (use the included standard charger overnight)
- Power cable connector dry and firmly seated
- Battery communication cable connected (if applicable)
- Both clamp handles fully tightened
- Tiller arm locked into position
- Wrist lanyard attached
- Propeller clear of obstructions
- Battery power switch in OFF position until ready to depart
Step 7 — First Water Test and Hydrogeneration Setup
For the first water test, find open, uncrowded water away from docks and other boats. Start at low throttle and gradually increase this lets you feel how the motor responds before committing to full power near obstacles.
The epropulsion Spirit Evo includes hydrogeneration the motor recharges the battery when the boat is moving under sail. To activate hydrogeneration, navigate to the hydrogeneration mode in the tiller display and ensure the throttle is at zero. As the boat's speed increases under sail, the display will show watts being returned to the battery. For a full visual walkthrough of the first launch, the Spirit Evo installation video covers the physical setup step by step.
Three Installation Mistakes That Are Entirely Avoidable
Ordering the wrong shaft length.
The number one documented issue with Spirit Evo installations. Measure your transom before ordering, not after. If you're between sizes, go long.
Connecting the battery with the power switch ON.
Creates a spark at the connector and risks short-circuit damage to the electrical system. Always confirm the switch is OFF before connecting. Always.
Mounting too high.
Especially common on inflatables where the transom is shallow. If the propeller is ventilating, you'll hear it and feel the motor surge erratically, lower the mounting position by one bracket setting and test again.
Frequently Asked Questions
Does the Spirit 1.0 Evo battery come included?
No. The Spirit Battery Plus (1,276 Wh) is a separate purchase. The tiller control system is also sold separately. Check that all three components motor, battery, and control are in your order before checkout.
What shaft length does the Spirit 1.0 Evo come in?
Short (S) and Long (L) only. The extra-short (XS) option is available on the Spirit 1.0 Plus but not the Evo. Short suits transoms up to approximately 15 inches; long suits transoms up to approximately 20 inches. When between sizes, choose long.
How do I know if my mounting height is correct? At cruising speed, the motor should run smoothly and quietly. If you hear an erratic, surging noise, particularly at higher throttle — the propeller is ventilating, which indicates the mounting position is too high. Lower by one bracket position and retest.
Can I use a third-party battery with the Spirit 1.0 Evo?
The motor will run on compatible 48V external batteries via the external battery cable. However, using a non-ePropulsion battery voids the motor warranty and eliminates the real-time BMS communication that powers the battery percentage display on the tiller.
How long does installation take?
For an experienced boater with all components on hand, the complete installation takes 20–30 minutes. First-time installation, including carefully reading the control system guide, typically takes 45–60 minutes.
Getting the installation right the first time means the motor disappears into the background of every trip that follows, which is exactly where it should be. EMO Electric carries the complete Spirit 1.0 Evo ecosystem: motor, battery, tiller, remote control options, and accessories, and their team can confirm shaft length, control configuration, and component compatibility for your specific boat before anything ships.
