Overview

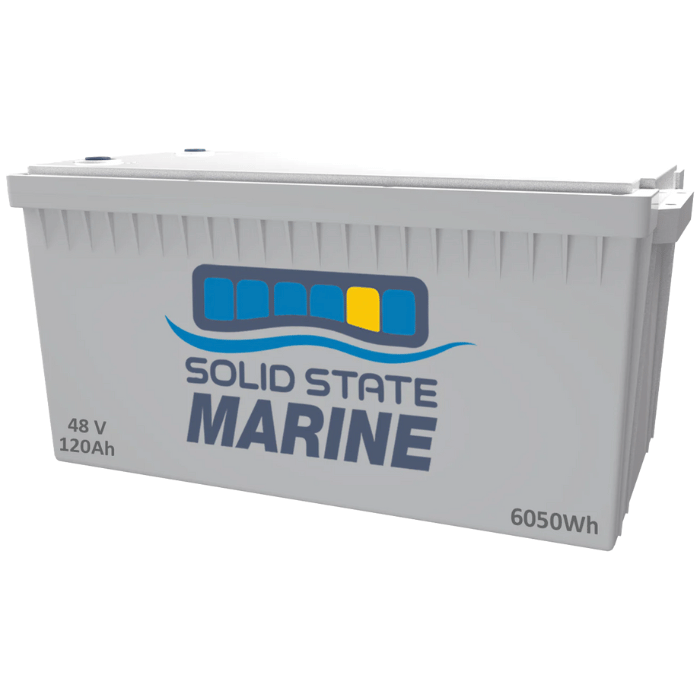

Introducing the Ultimate Marine Battery

Experience unparalleled performance with Solid State Marine’s revolutionary solid-state technology. This versatile battery is the perfect replacement for AGM or LFP batteries, suitable for both starting engines and deep cycle applications. With 1000 cold cranking amps (CCA), a high continuous discharge rate of 250A, and a peak discharge of 500A ensures robust and reliable performance.

More Power / Less Weight: Delivers over 10584 Wh of power while weighing just 105 lbs., all within a compact Group 8D package!

Greater Safety: Solid state batteries are non-combustible which makes them much safer than traditional lithium or AGM batteries.

Superior Temperature Performance: Operates down to -4°F without the use of a heater! And operates in extreme conditions up to 155°F

Bluetooth: IOS and Android Apps control and monitor battery functions such as State of Charge

Features

Perfect for: Electric Outboard Motors & Trolling Motors

Replaces your Lead Acid or Traditional Lithium Batteries: 15% higher energy & 50% lighter than normal lithiums & 300% lighter than Lead Acid.

Highest Energy Density: 100 Wh/lbs., 10X more than similar Lead Acid batteries and almost 2X more than normal lithium.

Low-Temperature Cut-Off Protection: cuts charging and loads when below -20°C/-4°F, extending battery life

Grade-A cells only, 3000+ cycles at 100% DOD

20+ BMS Protections: protects against low temperature, high temperature, short circuit, overvoltage, overcurrent, and undervoltage + more.

Auto Overload Protection & Recovery-No User Intervention Required

IP 67 Rating: moisture, dust, water, and salt spray resistance for reliability in humid environments.

ABYC Compliant:  All SSM marine batteries meet ABYC standards, ensuring the highest safety for your boating or sailing needs.

Specs

Battery

Cell Type: Solid State Lithium

Rated Capacity：210Ah

Nominal Voltage：50.4 V

Energy：10584 Wh

Weight Approx：103 lbs

Size：L120.75" x W11.13" x H10.88" inch (Group 8D size)

Housing Material: ABS (Flame Retardant Plastic)

Protection Class：IP67

Terminals：M8 bolts

Max. Expansion: Up to 4 Batteries Parallel, 2 in Series

Warranty：8 Years Manufacturers Defects, 5 year FREE replacement

Cycle Life：3000 cycles at 100% DOD (Depth of Discharge)

Internal Resistance：≤40mΩ

Certifications UL 1642, UN38.3

ABYC Compliant: Yes

BMS

Peak Discharge Current：500A

Continuous Discharge Current：250 A

CCA equivalent：1000

CHARGE

Charge Method：CC/CV

Charge Voltage：58.8V±0.6V

Recommend Charge Current：Up to 100A

TEMPERATURE

Charge Temperature：-4℉ to 155℉ / -20℃ to 70℃

Discharge Temperature：-4℉ to 155℉ / -20℃ to 70℃

Storage Temperature：-4℉ to 113℉ / -20℃ to 40℃

Low-Temperature Protection：Yes (-4℉/-20℃)

Low-Temperature Charging Protection Auto Recovery：Yes (32℉/0℃)
