Solid State Marine

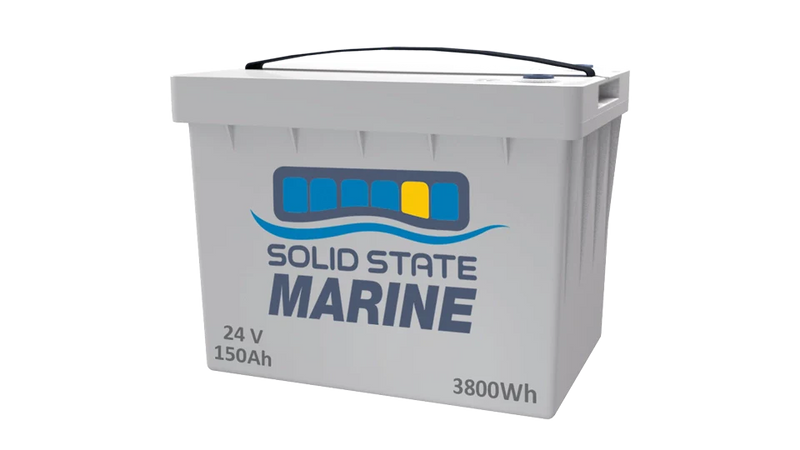

Solid State Marine 24V 150Ah Trolling Motor Battery

$2099

Solid State Marine Batteries SHIP FREE to the Continental US!

This powerful 24V 150Ah deep cycle battery is designed for both starting engines and deep cycle applications, featuring solid-state technology for unparalleled performance. With 1000 cold cranking amps and a high continuous discharge rate of 250A, it ensures robust and reliable performance. The battery delivers over 3780 Wh of power while weighing just 39.4 lbs, making it a great option for those who need a reliable and efficient battery. It operates down to -4°F and up to 155°F, and includes Bluetooth connectivity for easy monitoring.


Lead time on Solid State Marine Batteries is typically one week or less during the Spring and Summer.

Model: 24V150Ah

Weight: 39.4 lbs.

Size: Group 31 (L13.37" x W7.28" x H9.88" inch)

Introducing the Ultimate Marine Battery

Experience unparalleled performance with Solid State Marine’s revolutionary solid-state technology. This versatile battery is the perfect replacement for AGM or LFP batteries, suitable for both starting engines and deep cycle applications. With 1000 cold cranking amps (CCA) and a high continuous discharge rate of 250A, it ensures robust and reliable performance.

More Power / Less Weight: Delivers over 3780 Wh of power while weighing just 38 lbs., all within a compact Group 31 package!

Greater Safety: Solid state batteries are non-combustible which makes them much safer than traditional lithium or AGM batteries.

Superior Temperature Performance: Operates down to -4°F without the use of a heater! And operates in extreme conditions up to 155°F

Bluetooth: IOS and Android Apps control and monitor battery functions such as State of Charge

Perfect for: Trolling Motors, Stabilizers, Bow Thrusters, Starting Motors, House Batteries, Solar Systems/Off-Grid and other outdoor activities

Replaces your AGM or Traditional Lithium Batteries: 15% higher energy & 50% lighter than normal lithiums & 300% lighter than Lead Acid.

Highest Energy Density: 100 Wh/lbs., 10X more than similar Lead Acid batteries and almost 2X more than normal lithium.

Low-Temperature Cut-Off Protection: cuts charging and loads when below -20°C/-4°F, extending battery life

Grade-A cells only, 3000+ cycles at 100% DOD

20+ BMS Protections: protects against low temperature, high temperature, short circuit, overvoltage, overcurrent, and undervoltage + more.

Auto Overload Protection & Recovery-No User Intervention Required

IP 67 Rating: moisture, dust, water, and salt spray resistance for reliability in humid environments.

Group 31 Batteries Size: L13.37 x W7.28 x H9.88 inch

ABYC Compliant:  All SSM marine batteries meet ABYC standards, ensuring the highest safety for your boating or sailing needs.

Specifications

Battery

Cell Type: Solid State Lithium

Rated Capacity:150Ah

Nominal Voltage:25.2 V

Energy:3780 Wh

Weight Approx:39.4 lbs

Size:L13.37" x W7.28" x H9.88" inch (Group 31 size)

Housing Material:ABS (Flame Retardant Plastic)

Protection Class:IP67

Terminals:M8 bolts

Max. Expansion: Up to 4 Batteries Parallel, 2 in Series

Warranty:8 Years Manufacturers Defects, 5 year FREE replacement

Cycle Life:3000 cycles at 100% DOD (Depth of Discharge)

Internal Resistance:≤40mΩ

Certifications:UL 1642, UN38.3

ABYC Compliant: Yes

BMS

Peak Discharge Current: 350A

Continuous Discharge Current:250 A

CCA equivalent:1000

CHARGE

Charge Method:CC/CV

Charge Voltage:29.4V±0.6V

Recommend Charge Current:Up to 75A (0.5C)

TEMPERATURE

Charge Temperature:-4℉ to 140℉ / 0℃ to 60℃

Discharge Temperature:-4℉ to 155℉ / -20℃ to 70℃

Storage Temperature:-4℉ to 113℉ / -20℃ to 40℃

Low-Temperature Protection:Yes (-4℉/-20℃)

Low-Temperature Charging Protection Auto Recovery:Yes (32℉/0℃)
